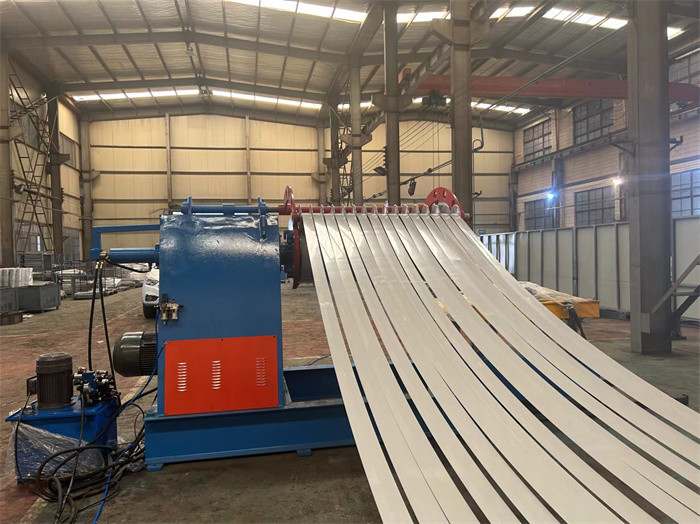

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250

  • 1
  • 2

Brand Name : Jinye

Model Number : compact 0.3-1.2 X 1250

Place of Origin : Wuxi, China

MOQ : 1Set

Payment Terms : L/C, T/T

Supply Ability : 20Sets per Year

Delivery Time : 100-120days

Packaging Details : 1x40HC + 1 x 20GP

Product Name : Compact Ecomonic GI PPGI Steel Slitting Machine

Sheet Coil Material : CR, GI, GL, PPGI

Sheet Coil Width : 300-1250mm

Sheet Coil Thickness : 0.3-1.2mm

Slitting Speed : 0-30m/min

Coil I.D : 508mm, 610mm

Coil O.D : 1200mm

Coil weight : 6T

Number Of Slitting : 1mm x 15slits

Slitting Precision : +/-0.20mm

Applicable Industries : Energy & Mining, Home Use, Hotels, Retail, Farms, Construction works , Garment Shops, Restaurant, Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Key Selling Points : High Precision，High Productivity，Low cost and high speed

After Sales Service : Online support, Field Installation

After Warranty Service : Video technical support, Online support, Field maintenance

Contact Now

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250

When customer needs small gauge slit baby coils to make metal plate product, he can choose compact ecomonical type, simpler structure, lower speed, lower cost. The compact steel coil slitting machine is very suitable for small production economic investment, like the roof profiles like keef, stud, cable tray, celling panels, etc.

Composed of Coil-loading car, Cantilever Single-mandrel active uncoiler→Side guide, slitter + edge scrap reeler→over ground loop→pre-separator + tensioner→recoiler, coils discharging car.

Parameters:

Compact Slitting Line
JY(0.25 -1.2 X 1300) 40m/min		 Parameters
Coming steel coils ID508mm, 610mm, OD1200mm, coil weight 6T
Finished baby coils ID508mm, OD1200mm, coil weight 6T max
Mother coil width 300-1300mm
Baby coil widths 60mm -600mm
Number of slitting 1mm x 15slits
Main motors Slitter 30KW + Recoiler 37KW
Slitter knife

ID160 x OD280 x 40mm SKD11 HRC58-61

knives are fixed on arbors by screws.
Recoiler mandrel Cantilever mandrel
Slitting speed 0-30mpm adjustable
Configuration Siemens PLC, Inverter Drive, Vitory Valves
Slitting precision Slit width ±0.2mm; Camber ±0.1mm/m;
bur 5% of thickness; recoil hump<0.5mm

Configuration:

AC motor drive and frequency converter for slitting and recoiling

Siemens smart PLC and big screen touch screen

Chint or Schneider electric parts

Layout Drawing

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250

Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250Compact Ecomonic GI PPGI Steel Slitting Machine For Light Gauge 0.3-1.2 X 1250
